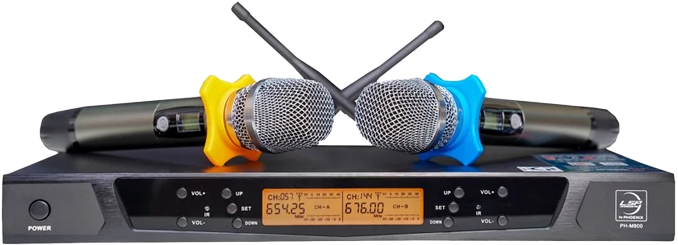

PH-M800

ph-m800

PH-M800

Mô tả


THÔNG SỐ KỸ THUẬT

Microphone Specifications

Carriver Frequency:UHF 640-690 MHz
Frequency Stability:±0.01%
Max Tx Power: 30mW
Spurious Emission: < 40dBc
Maximum Deviation:±40kHz
Harmonic radiation:<-63dBm
S/N Ratio:> 90dB
Dynamic Range:≥ 90dB
Ondo:Condenser/dynamic(optional)
Frequency Response:50Hz-15kHz
Distortion:>0.4%

Received pecifications

Channel:100*2
Carriver Frequency Range:UHF 640-690 MHz
Frequency Steadying:±10ppm
Mobile State Range:-90dB
Modulation Mode:FM/PLL
Frequency Response:40Hz-13000Hz
S/N Ratio:≥85dB
F/N Ratio:>85dB
P/N Ratio:>85dB
Service Areas:≥ 50m
Receiver Power Supply:DC 12V
