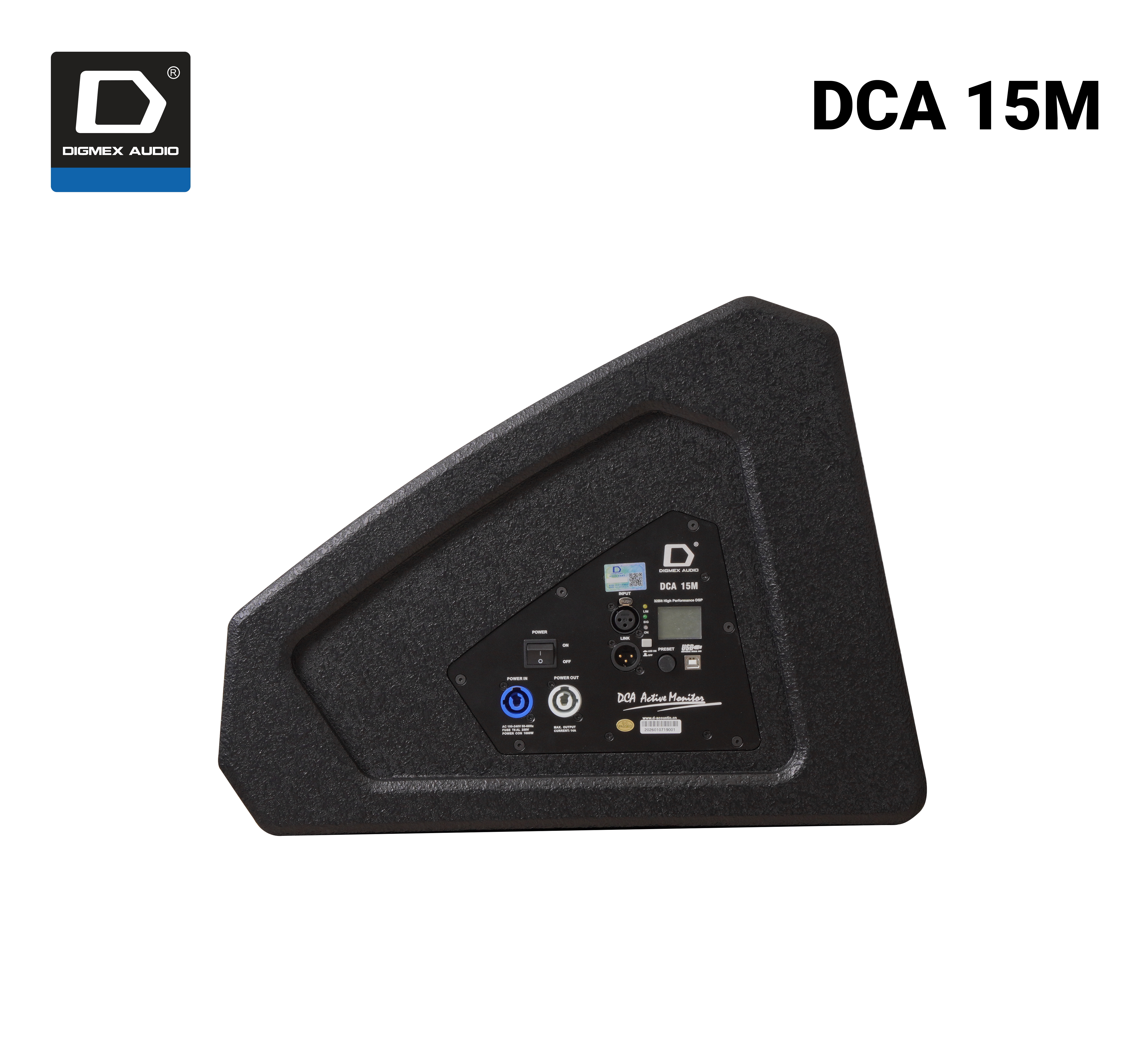

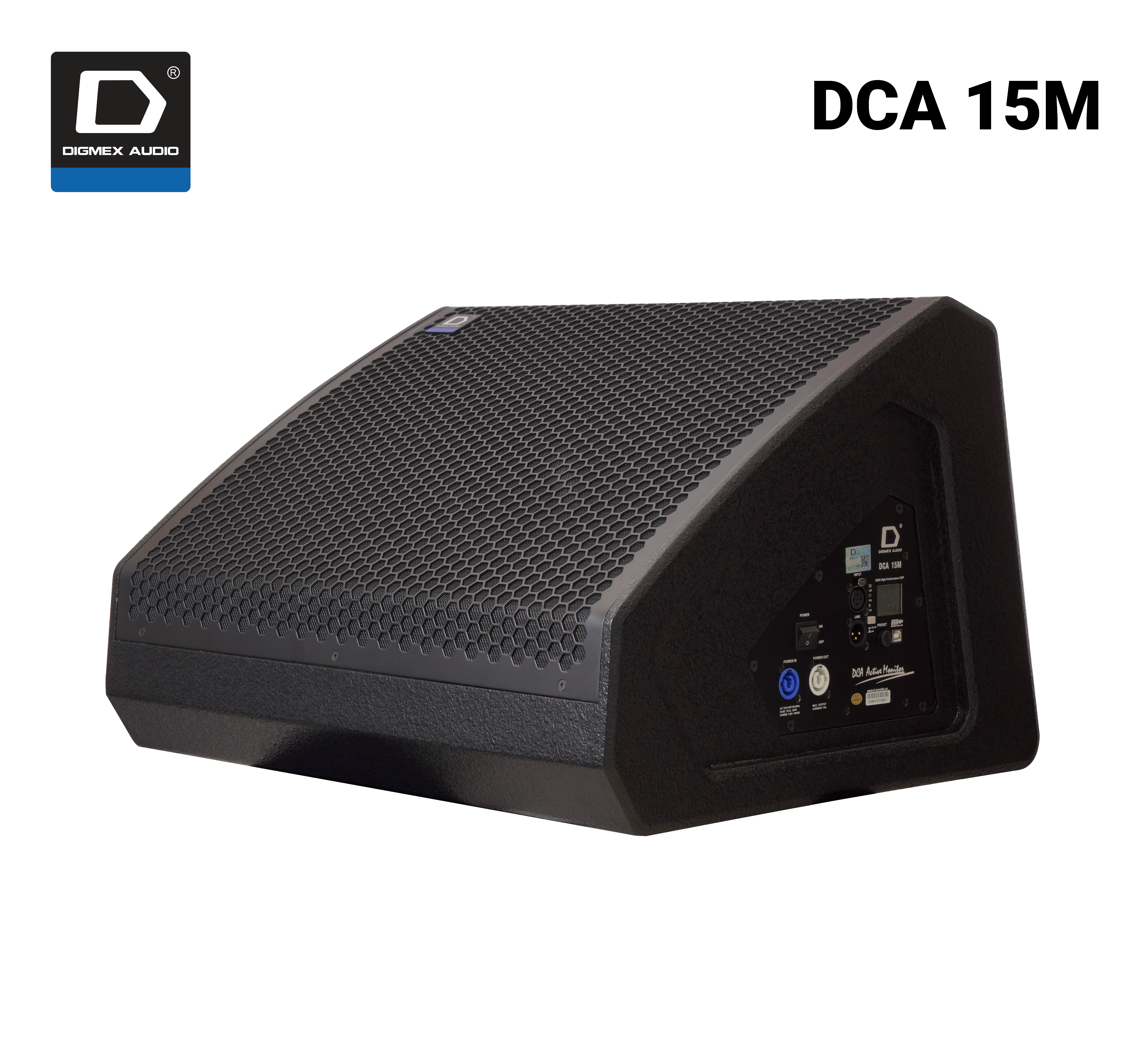

LOA MONITOR DCA-15M

DCA-15M active coaxial speaker system, its advanced system design and through DSP and supporting amplifier module to optimize the system parameters, ensure the system in the sound effect, power, projection angle, system stability and durability have a very excellent performance.

 It is suitable for fixed installation and mobile performance with full frequency and monitoring functions, and can be used together with cla-xi10a portable active performance system.

THÔNG SỐ KỸ THUẬT

Model: DCA-15M;

Type: 15"Two-way Coaxial Speaker;

Unit Composition: 15" (380mm) +1.7" (44mm) Coaxial Speaker Unit;

Frequency Response: 55Hz-20kHz (±3dB);

Sensitivity (1W/1m)) : 107dB;

Max SPL (Continuous) : 132dB;

Rated Power: LF 350W, HF 55W (AES), LF 1400W, HF 220W (PEAK);

Nominal Impedance: LF 8Ohm, HF 8Ohm;

Coverage Angle (HxV): 80°x 80°;

Mounting Accessories: 1xSpecial Speaker Support Hole;

Enclosure Color: Black;

Dimensions (WxHxD): 607x393 x 517mm;

Weight (kg): 25.1;

Power Module:;

DSP: 48K Sampling Frequency, 8-band Input EQ, 8-band Output EQ, LIMITER, 12/24/48dB Buterworth/Basel/Linkwitz-Riley Crossover; 200ms Delay for Input, 200ms Delay for Output

Rated Power (EIAJTHD=1%,1KHZ): 8 Ohms 200W+500W 4 Ohms 400W+900W;

Frequency Response: -0.5dB 1dB 20-20KHz THD+N (10%Rated Power) <1% IMD-SMPTE(10%Rated Power) <1.2% ;

Signal-to-Noise Ratio: >94dB >96dB (A-weighted) ;

Power Voltage: 100-240VAC 50/60Hz
