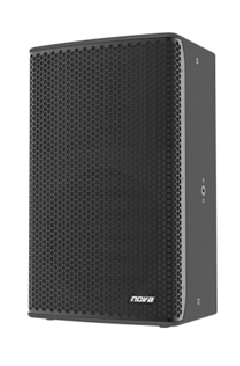

LOA NOVA MF-12

The passive MF-Series loudspeakers are multifunctional premium-class compact 2-way system, finest quality components and many interesting details. High-power Neodymium compression driver and long-excursion coils woofers provide high efficiency and reduced distortion. Equipped with modern chassis technology and perfect tuned passive crossovers, the MF-Series can deliver outstanding sound quality and very high dynamic. The MF-Series is equally suitable for permanent installations and mobile use. Compatible to all active and passive Bass Systems.

THÔNG SỐ KỸ THUẬT

Model: MF-12;

System Type: 12", two-way, bass-reflex, stage-monitor / utility;

Frequency Range (-10 dB): 50 Hz - 20 kHz;

Frequency Response (±3 dB): 55 Hz - 18 kHz;

Coverage Pattern: 90° x 60° nominal (HxV);

HF Horn: Rotatable horn;

Crossover Modes: Passive;

Crossover Frequency: 1400 Hz Power Rating;

(Continuous** / Program): Passive: 450 W / 900 W ;

Maximum SPL***: 129.6 dB SPL peak;

System Sensitivity (1w/1m): 97 dB SPL;

LF Driver: 1 x NOVA MF12-LF/F76-8 (3 in. voice coil);

LF Nominal Impedance: 8 ohms (passive);

HF Driver: 1 x NOVA MF15-HF/N75-8, 3.0 in. voice coil;

HF Nominal Impedance: 8 ohms (passive);

Active Tunings: n/a (passive);

Enclosure: Monitor / untility speaker, 15 mm, birch plywood;

Suspension / Mounting: M20 pole socket, 11 x M8, 2 x M10 for optional bracket;

Transport: 2 x integrated handles;

Finish: Black Polyurea Coating;

Grille: Powder coated, black perforated steel with acoustic;

Black mesh backing
